Perils for Pedestrians
TV talk about people who walk
Sidewalk Obstructions
Sidewalks are often treated as unused space, available as a convenient place to put all manner of things, from parked cars to utility poles. But filling a sidewalk with obstructions can be highly detrimental to pedestrians trying to use the sidewalk for its intended purpose. Every obstruction is a pinch point, where pedestrians must go single file, or wait for someone from the other direction, or risk scraping their elbows, wheelchair, or grocery bags if they do not thread carefully enough through the narrow spaces.
In severe cases, obstructions may keep pedestrians from getting by at all. The capacity, the usefulness, and the friendliness of the sidewalk all suffer. However, if you stop thinking of sidewalks as an easy place to stick stuff, you can usually think of a better place to put potential obstructions. Here are some examples.
When There Is Space Between the Sidewalk and the Curb
Using Planting Strips for Utilities
Where sidewalks are set back behind a planting strip, there is a space
to put signposts, utilities, and other fixed objects in the grass next
to the curb and out of the sidewalk. (This is just one of the two dozen
reasons to have a planting strip, see Sidewalk Setbacks).
In this example, a row of utility poles uses the grass strip between the sidewalk and the curb on W Street, NW, in Washington, DC
Without a Planting Strip
Where there is no planting strip, and the sidewalk is at the curb, obstacles of all sorts need to be placed behind the sidewalk. This may require coordination between government agencies or regulation of utilities which may act independently of the agency responsible for the sidewalk.
Signposts
Signposts are usually put in place by a government agency, such as the Department of Transportation or the Public Works Department, so the entity responsible for sidewalks has direct control over most signposts.

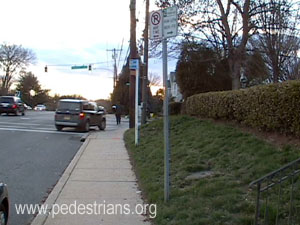

Signposts
are placed out of the way in the grass behind the sidewalk in Bethesda,
Maryland.
Just down the block, concrete was blasted to place this signpost in the
sidewalk.
Fire Hydrants: better for firefighters and pedestrians when not in the sidewalk
Fire hydrants are located in virtually every block where there are water mains from a public water supplier. Locations sometimes seem to be random, with some placed out of the way behind the sidewalk, while others are put right in the sidewalk.

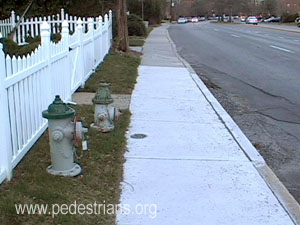

A
fifty-year-old fire hydrant and its replacement are located out of the
way behind the sidewalk in Bethesda, Maryland. This location gives
firefighters the full width of the sidewalk to maneuver when attaching
their fire hoses in an emergency.
A few blocks away, the old fire hydrant has blocked the sidewalk for
fifty years. White paint marks the location where its replacement will
continue to block the sidewalk for the next fifty years.
Utility Poles
Utility poles are several times more numerous than fire hydrants in anyplace that does not have underground utilities. In some towns the overhead utilities run down alleyways, and do not interfere with pedestrian traffic. However, in other places overhead utilities run down the streets, and pole placement becomes a major issue for pedestrians.
In this example, utility poles are placed behind the sidewalk, keeping
the sidewalk clear for pedestrians.
In contrast, utility poles located in the sidewalk are an obstacle for pedestrians. The effective clear space is less than it looks because pedestrians walking too close to the pole risk contact with splinters and creosote.
Accessible Sidewalks
The Americans With Disabilities Act (ADA) requires that sidewalks be accessible, which means there must be a minimum clear width to get around any obstruction. However, it is far better to have obstructions out of the sidewalk entirely.
A
blind pedestrian is about to encounter a streetlight pole in the sidewalk.
Navigation would be far easier without such obstructions. The streetlight
could have been designed with a longer arm so that the pole could have
been placed behind the sidewalk.
Just Pass or Excel?
Often those responsible for blocking the sidewalk will say that it is alright because they meet the minimum legally required by the ADA. That is like bragging that you passed because you got a D on your report card. We should expect better than that. Rather than striving for a D, they should attempt to get an A by putting the obstructions entirely out of the sidewalk.
Easier Maintenance
In addition to accessibility, a sidewalk clear of obstructions is easier to maintain. A 4-foot or 5-foot sidewalk plow or sweeper cannot be used on a sidewalk where only 3 feet of clearance has been left around obstructions. Also, sidewalks can be cleared of snow using wing extensions on road plows only if the sidewalk is completely free of all obstructions.

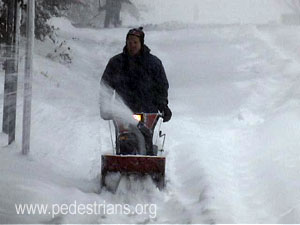

Clearing
snow from sidewalks with plows is much faster and easier than with manual
equipment. Even snow blowers take longer than a plow mounted on a small
vehicle. However, if the sidewalk has obstructions, then a plow the width
of the sidewalk cannot be used.
New Construction the Time to Plan
With new construction, there is usually no cost to locating obstructions outside of the sidewalk. Moving existing obstructions can be quite expensive, so it is better to keep obstructions out of the sidewalk in the first place.
Retrofit Opportunities Often Wasted
Infrastructure has a limited life span, which means poorly located poles and hydrants will eventually need to be replaced. This creates an opportunity to put the replacements out of the sidewalk at little additional cost. If the opportunity is missed, the new poles and hydrants will continue to block the sidewalk for another half century.
WSSC Fire Hydrant in Sidewalk
A brand new fire hydrant blocks a sidewalk on Bradley Boulevard in Bethesda, Maryland. The Washington Suburban Sanitary Commission (WSSC) is replacing old water mains and fire hydrants in southern Montgomery County. In many places, the old hydrants have been located in sidewalks, restricting the passage of pedestrians for half a century or more. Attempts to get hydrants moved have always been met with objections about the cost. Now that the entire system is being replaced, the new hydrants could be located outside of the sidewalk at little additional cost. Unfortunately, they are being put back in the sidewalk just like the old hydrants. The WSSC is showing an appalling lack of respect for pedestrians.
PEPCO Utility Poles in Sidewalks
Brand new utility poles were placed in the sidewalk along Foxhall Road in Washington, DC. A new turn lane required moving the curb, sidewalk, and a row of utility poles. Rather than put the new poles in the grass behind the sidewalk, PEPCO blasted holes through the concrete of the new sidewalk so they could obstruct the sidewalk. This lack of respect for pedestrians is why poles continue to obstruct sidewalks, even in cases where it might actually be easier to place the poles outside of the sidewalk.
Temporary Obstructions, Same Fixed Attitude
Pedestrians also have problems with temporary sidewalk obstructions, such as parked cars or overgrown shrubbery. Both temporary and permanent obstructions are the result of thoughtless people who show little respect for pedestrians.

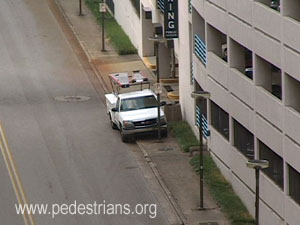

This street near the Convention Center in Chattanooga, Tennessee, was
built with the streetlight poles in the center of the sidewalk. The permanent
obstructions are compounded by the temporary obstruction of a truck parked
on the sidewalk, despite abundant space on the adjacent street. The biggest
hurdles to creating barrier-free sidewalks are not technical or financial,
but attitudinal.
